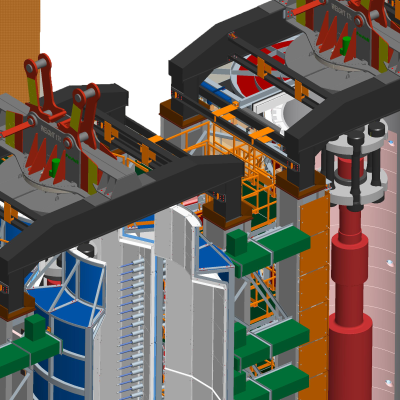

Mechanical calculations, 3D design and production of workshop documentation are the main activities of our engineering office.

Design solutions are verified by calculations and the finite element method. Once the technical solution has been defined and checked, we start preparing the workshop documentation.

We perform calculations accurately and quickly. We can check the load-bearing capacity of existing structures or those that are yet to be made.

Our finite element simulations have been validated in practice.

We can customize the workshop drawings and technical documentation according to your requirements.

• Industrial furnaces, industrial washing and degreasing machines;
• Industrial manipulators and load lifting machinery;
• Various cranes, cranes, gripping devices;
• Various actuators, pneumatic, hydraulic and drive systems;
• Load-bearing structures of various dimensions and purposes;
• Service platforms for stationary and mobile machines;

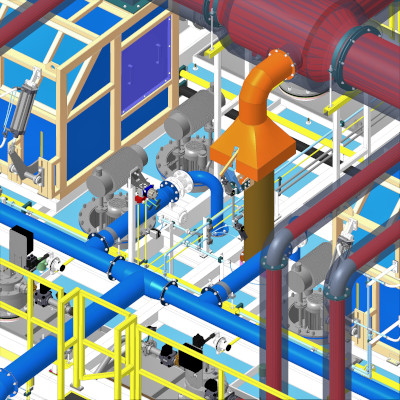

• Pipelines and their supports for cold and hot air, air/gas under pressure, water/oil under pressure. Diameters from ∅12 to ∅1200mm;
• Gas ramps and stations for the preparation of other fluids;

Wide range of analysis: bearing capacity check, deformation check, elastic stability of beams and sheets, safety of welded and screw connections ...

Standards: ISO, DIN, EC3, JUS, GOST, ANSI, ISI ...

Production according to the technical standards of the country where the equipment will be delivered. If the investor has special requirements regarding technical standards, we can meet them.

Structural simulations:

• Linear and nonlinear problems
• Mechanism simulations

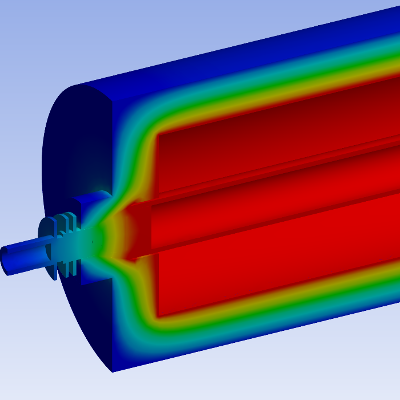

Thermal simulations:

• Heat transfer problems
• Combinations of conduction, convection and radiation
• Transient and non-transient simulations

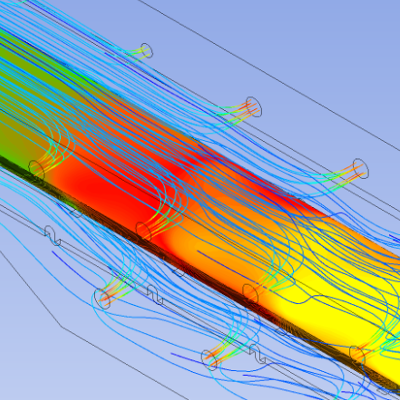

Fluid behavior simulations:

• Turbulent flow analysis
• Transient and non-transient simulations

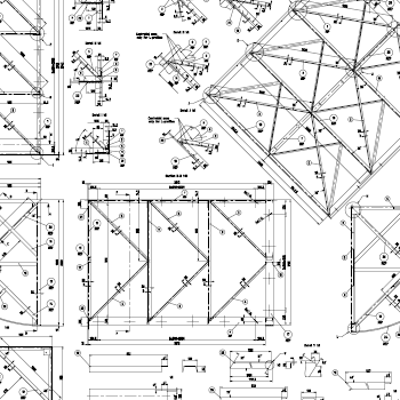

We create technical draftings and documentation in a very short time.

The drawings are made according to the most modern standards and can be available in various digital and paper formats.

We can continue the cooperation even after the technical documentation. We are available for modifications due to feedback during production and/or the exploitation phase.
